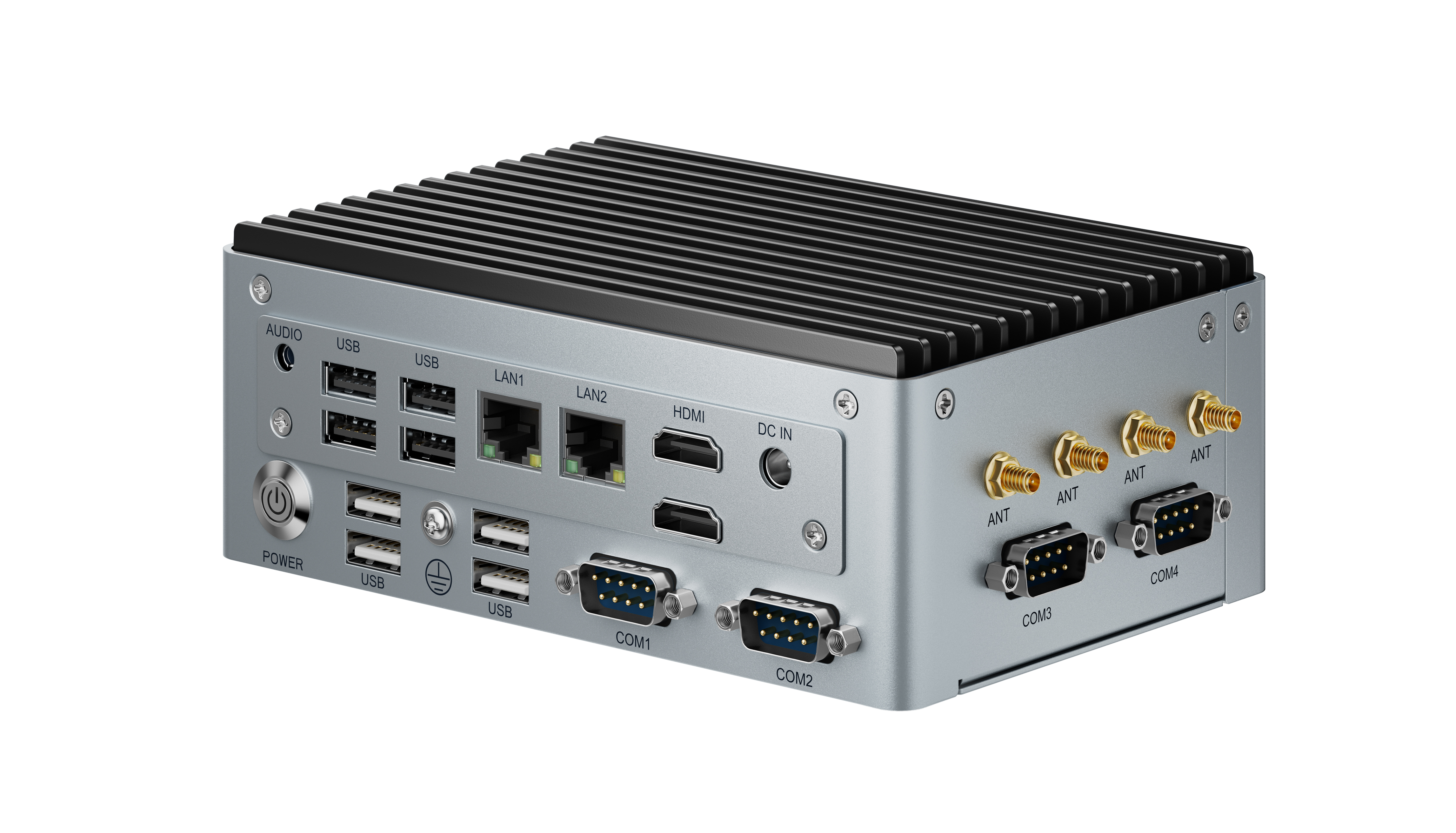

Rockchip RK3568 ARM Quad-Core Cortex-A55 2.0GHz Mali-G52 GPU
Built-in NPU, Performance up to 1.0 TOPS
Onboard 2/4G LPDDR4 memory and 32G eMMC
Dual Lan, Supports Wi-Fi / 4G / 5G modules
6x COM, 2x CAN FD, Micro SD, Micro SIM
Supports Linux and Android
Single 12V DC power input
| 处理器 | CPU | Rockchip RK3568 Arm Quad-core Cortex-A55 up to 2.0GHz |
| Core Number | ||
| # of P-cores | ||
| # of E-cores | ||
| Thread Number | ||
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Max Turbo Frequency | ||
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Processor Base Frequency | ||
| Socket | ||
| Chipset | ||
| NPU | 1 TOPS, Supports INT8/ INT16 hybrid operation | |
| Cache (MB) | ||
| CPU TDP | ||
| BIOS | ||
| 内存 | Technology | LPDDR4 1333MHz |
| Max capacity | On-board 1/ 2/ 4/ 8 GB | |
| ECC Support | ||
| Socket | ||
| Internal Memory | 16/ 32/ 64/ 128GB of eMMC NAND flash for OS | |
| 显示 | Controller | Mali-G52 |
| Graphic Engine | OpenGL ES 1.1/ 2.0/ 3.2, Vulkan 1.0/ 1.1, OpenCL 2.0 | |
| H/ W Video Codec | Decoder: Support 4K 60fps H.265/ H.264/ VP9 Encoder: Support 1080P 60fps H.265/ H.264 | |
| LCD (TTL/ LVDS/ eDP) | ||
| ADI (BNC/ VGA/ DVI-I) | ||
| DDI (DVI-D/ HDMI/ DP) | HDMI 1: Up to 4096x2160@60Hz HDMI 2: Up to 1920x1080@60 Hz | |
| Multiple Display | Dual | |
| 以太网控制器 | Controller | LAN 1: Realtek RTL8211F LAN 2: Realtek RTL8211F |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | ||
| 音频 | Audio Interface | Digital Audio Codec |
| CODEC | Integrated in the CPU | |
| Amplifier | ||
| Connector | ||
| 扩展 | PCI Expressx16 | |
| PCI Expressx8 | ||
| PCI Expressx4 | ||
| PCI Expressx2 | ||
| PCI Expressx1 | ||
| PCI | ||
| Mini PCIe | Full-size: 4G/ Wi-Fi | |
| M.2 Key-E | ||
| M.2 Key-B | Type 2280/ 3052: 5G/ MLU220-M.2 8TOPS, INT8 | |
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | ||
| TPM | ||
| Bus interface | ||
| 存储 | Memory Card | 1xMicro SD slot |
| SATA | 1x SATA3.0 for 2.5" SSD/ HDD | |
| mSATA | ||
| M.2 Key-B | ||
| M.2 Key-M | ||
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| LPT | ||
| Smart Fan | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| 前面板 | Display | 2x HDMI |
| RJ-45 | 2 | |
| USB 2.0 | 6 | |
| USB 3.2 Gen 1 | 2 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 2 (2x RS-232, are 2-wire RX & TX) | |
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | 1 (Head Phone& Microphone) | |
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | 1x Debug 1x USB2.0 OTG | |
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | 2x CAN FD | |
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 4 (2x 2-wire RS-232, 2x RS-232/ 485) | |
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | Micro SIM | |
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | SYS |
| Control | ON/ OFF | |
| Watchdog Timer | Support | |
| 电源 | Power Type | DC |
| Connector | DC Circular plug | |
| Power Consumption (Full Load) | ||
| Input Voltage | 12V | |
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | 0 ~ 60 °C (32 ~ 140 °F) with 0.7m/ s air flow |
| Non-Operational Temperature | -40 ~ 80 °C (-40 ~ 176 °F) | |
| Relative Humidity | 95%@40 °C (non-Condensing) | |
| 支持系统 | Microsoft Windows | |
| Linux | Ubuntu 18.04 | |
| Android | 11 | |
| BSD | ||
| 国产操作系统 | ||
| 物理规格 | Mounting | |
| Dimension(mm) | ||
| Dimension(WxHxD mm) | 160x60x105.2 | |
| Weight (Kg) | TBD |
