| 处理器 | CPU | Intel Celeron J6412 |
| Core Number | 4 | |
| # of P-cores | ||
| # of E-cores | ||
| Thread Number | 4 | |
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Max Turbo Frequency | 2.60 GHz | |
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Processor Base Frequency | 2.00 GHz | |
| Socket | ||
| Chipset | ||
| NPU | ||
| Cache (MB) | Smart Cache: 1.5MB | |
| CPU TDP | 10W | |
| BIOS | ||
| 内存 | Technology | Dual channel DDR4 3200Mhz |
| Max capacity | 32GB | |
| ECC Support | ||
| Socket | 2x SO-DIMM 260-Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel UHD Graphics (Elkhart Lake) |
| Graphic Engine | DirectX 12, OpenGL 4.5 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | 1x LVDS: Up to 1024x 768@60 Hz | |
| ADI (BNC/ VGA/ DVI-I) | ||
| DDI (DVI-D/ HDMI/ DP) | HDMI: Up to 4096x2304@60Hz DP: Up to 4096x2304@60Hz | |
| Multiple Display | Triple | |
| 以太网控制器 | Controller | LAN1: Realtek RTL8111H LAN2: Realtek RTL8111H |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | 2x RJ-45 | |
| 音频 | Audio Interface | HD Audio |
| CODEC | Realtek ALC897, High Definition Audio (HD) | |
| Amplifier | 2x 3W, L&R | |
| Connector | 1x Line out, 1x Mic-in | |
| 扩展 | PCI Expressx16 | |
| PCI Expressx8 | ||
| PCI Expressx4 | ||
| PCI Expressx2 | ||
| PCI Expressx1 | ||
| PCI | ||
| Mini PCIe | ||
| M.2 Key-E | Type 2230: Wi-Fi | |
| M.2 Key-B | Type 2242/ 2280: SATA SSD | |
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | ||
| TPM | ||
| Bus interface | ||
| 存储 | Memory Card | |
| SATA | ||
| mSATA | ||
| M.2 Key-B | Type 2242/ 2280: SATA SSD | |
| M.2 Key-M | ||
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | 2 | |
| USB 3.2 Gen 1 | 4 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 1x RS-232 1x RS-232/ 485 | |
| GPIO | 8 bit | |
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| LPT | ||
| Smart Fan | 1x CPU_FAN 1x SYS_FAN | |
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||

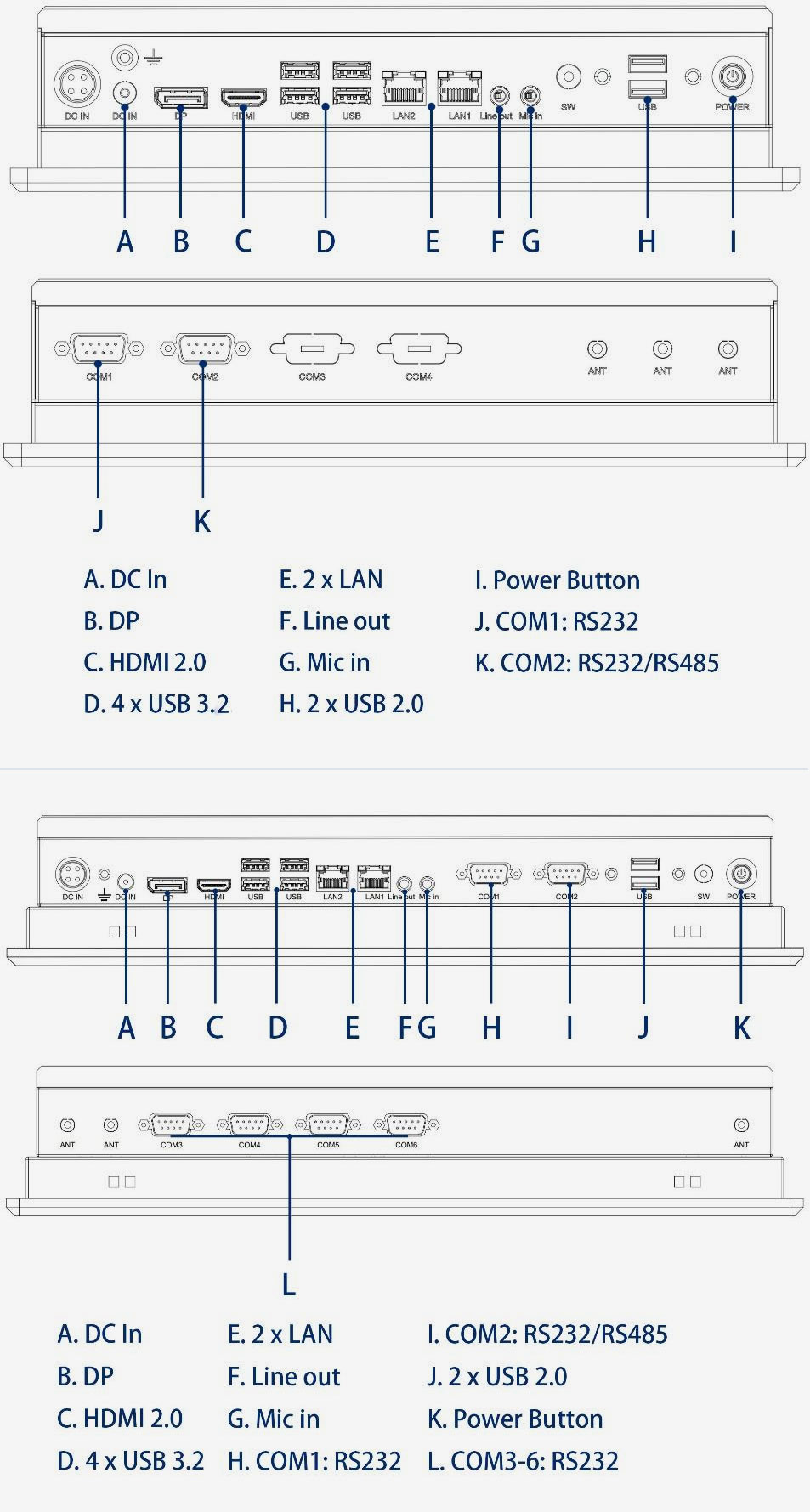

| 前面板 | Display | 1x HDMI 1x DP |
| RJ-45 | 2 | |
| USB 2.0 | 2 | |
| USB 3.2 Gen 1 | 4 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | 2x 3.5MM Audio | |
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 1x RS-232 1x RS-232/ 485 | |
| GPIO | 1x 8GPIO (optional) | |
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | SYS |
| Control | ON/ OFF | |
| Watchdog Timer | Support | |
| 电源 | Power Type | DC |
| Connector | DC Circular plug | |
| Power Consumption (Full Load) | ||
| Input Voltage | 12V | |
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | 0 ~ 60 °C (32 ~ 140 °F) with 0.7m/ s air flow |
| Non-Operational Temperature | -40 ~ 80 °C (-40 ~ 176 °F) | |
| Relative Humidity | ||
| 支持系统 | Microsoft Windows | 10, 11 |
| Linux | Yes (Linux kernel 5.18 or later) | |
| Android | ||
| BSD | ||
| 国产操作系统 | ||

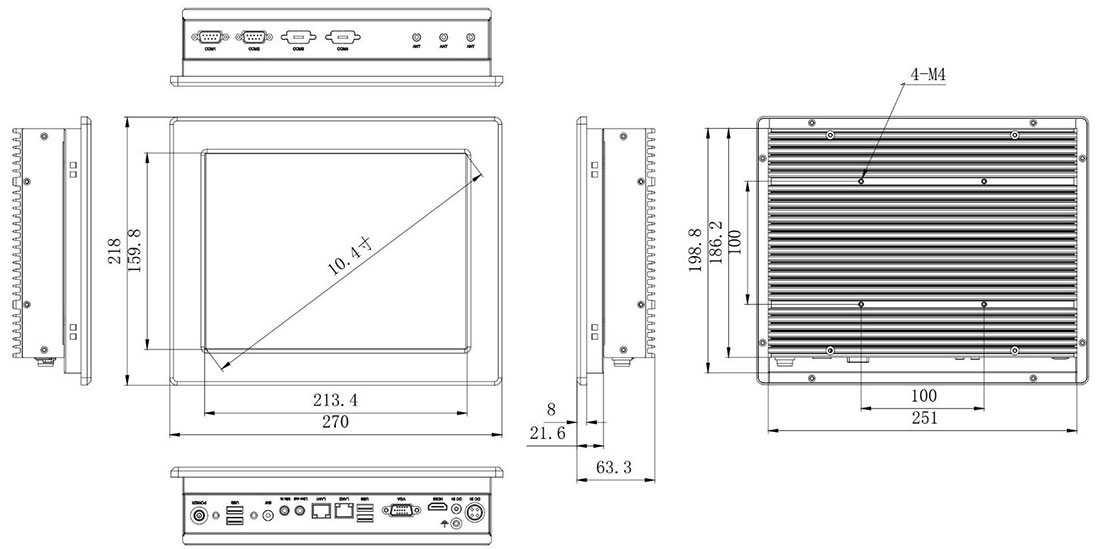

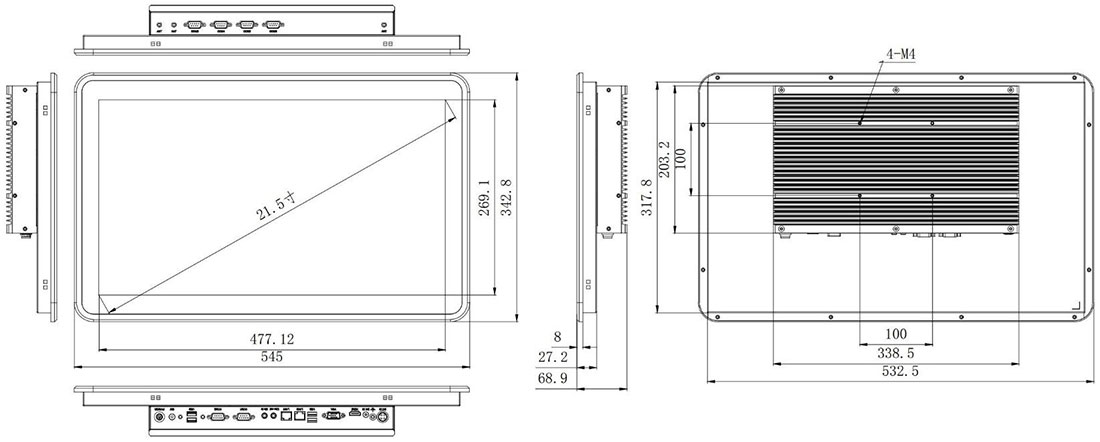

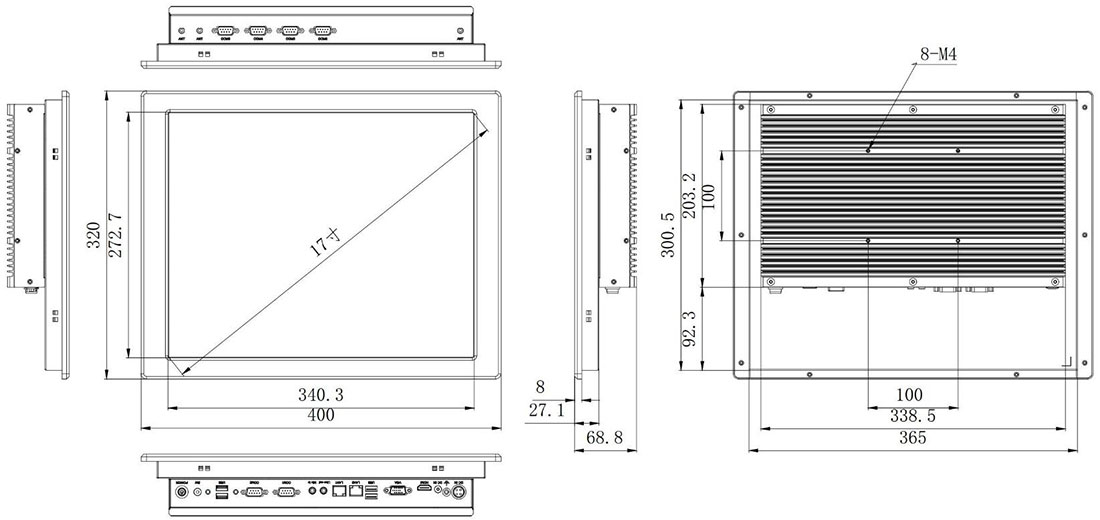

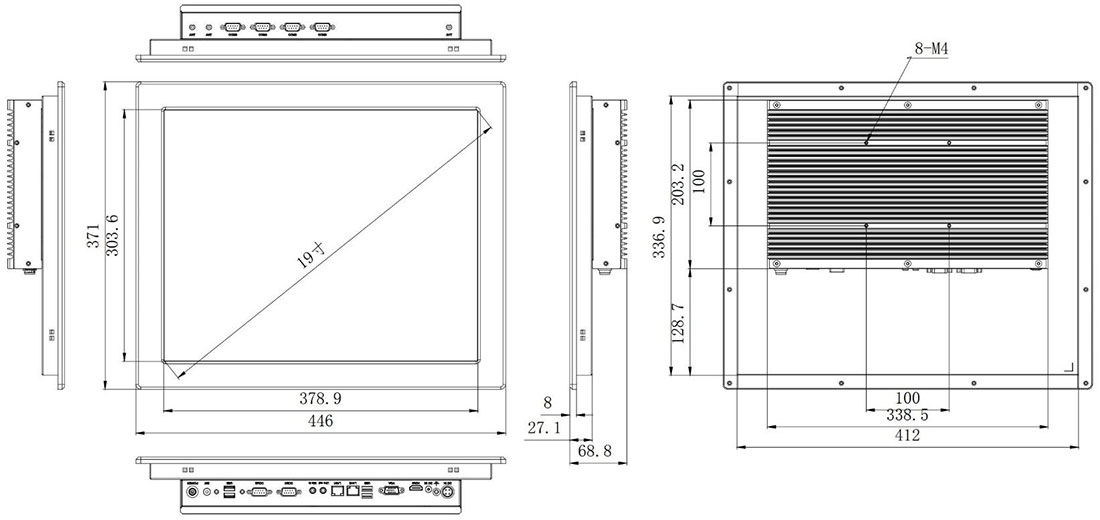

| 物理规格 | Mounting | |
| Dimension(mm) | ||
| Dimension(WxHxD mm) | 全尺寸 | |
| Weight (Kg) | TBD |
