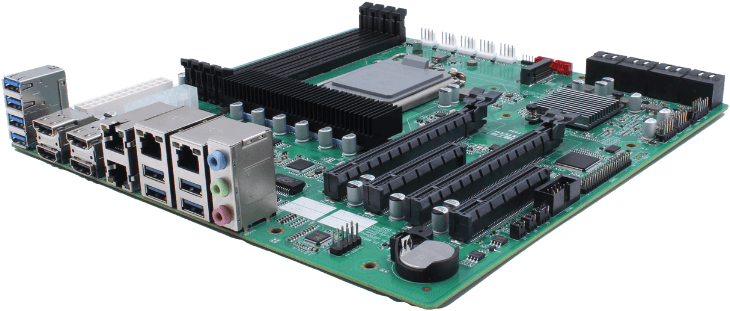

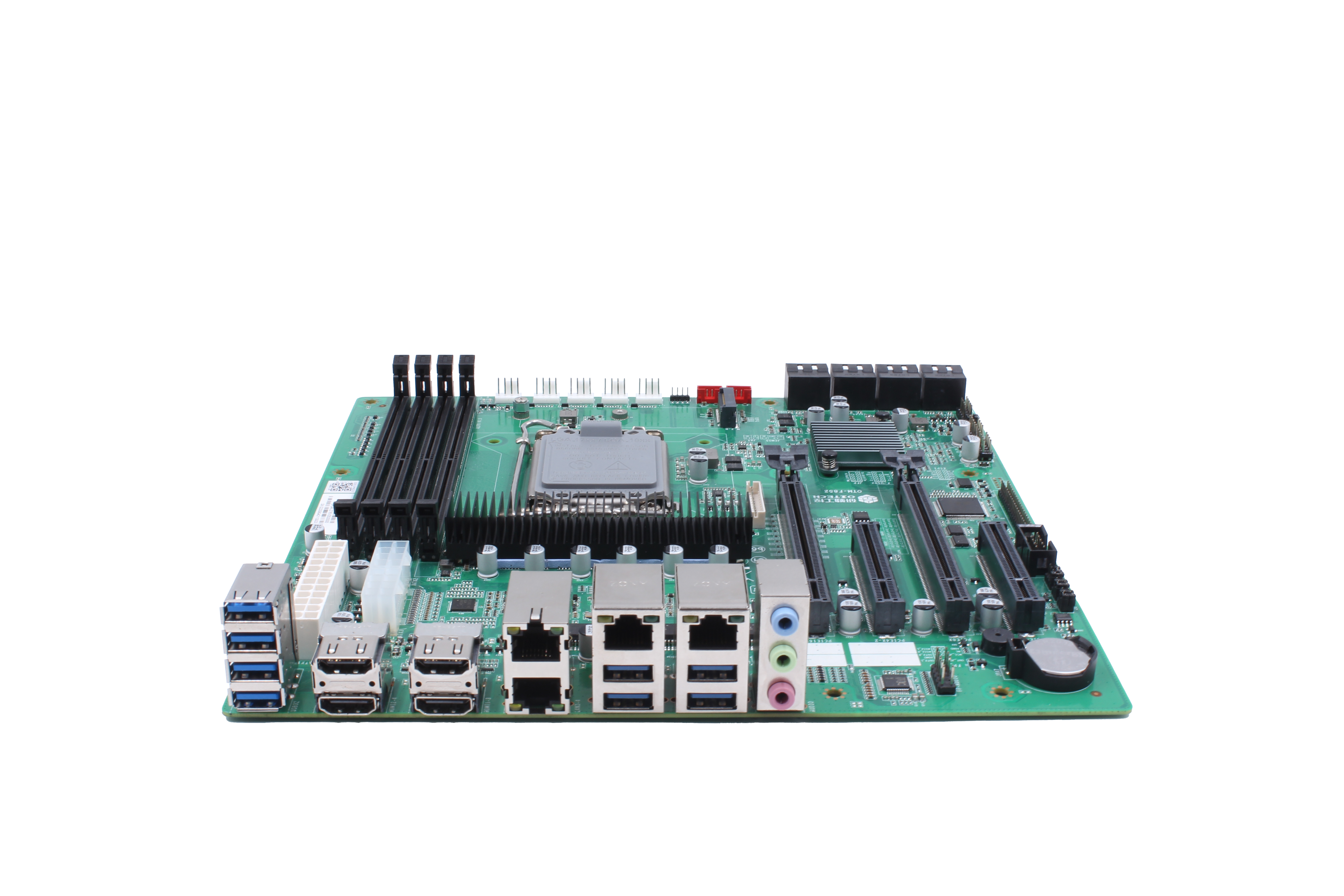

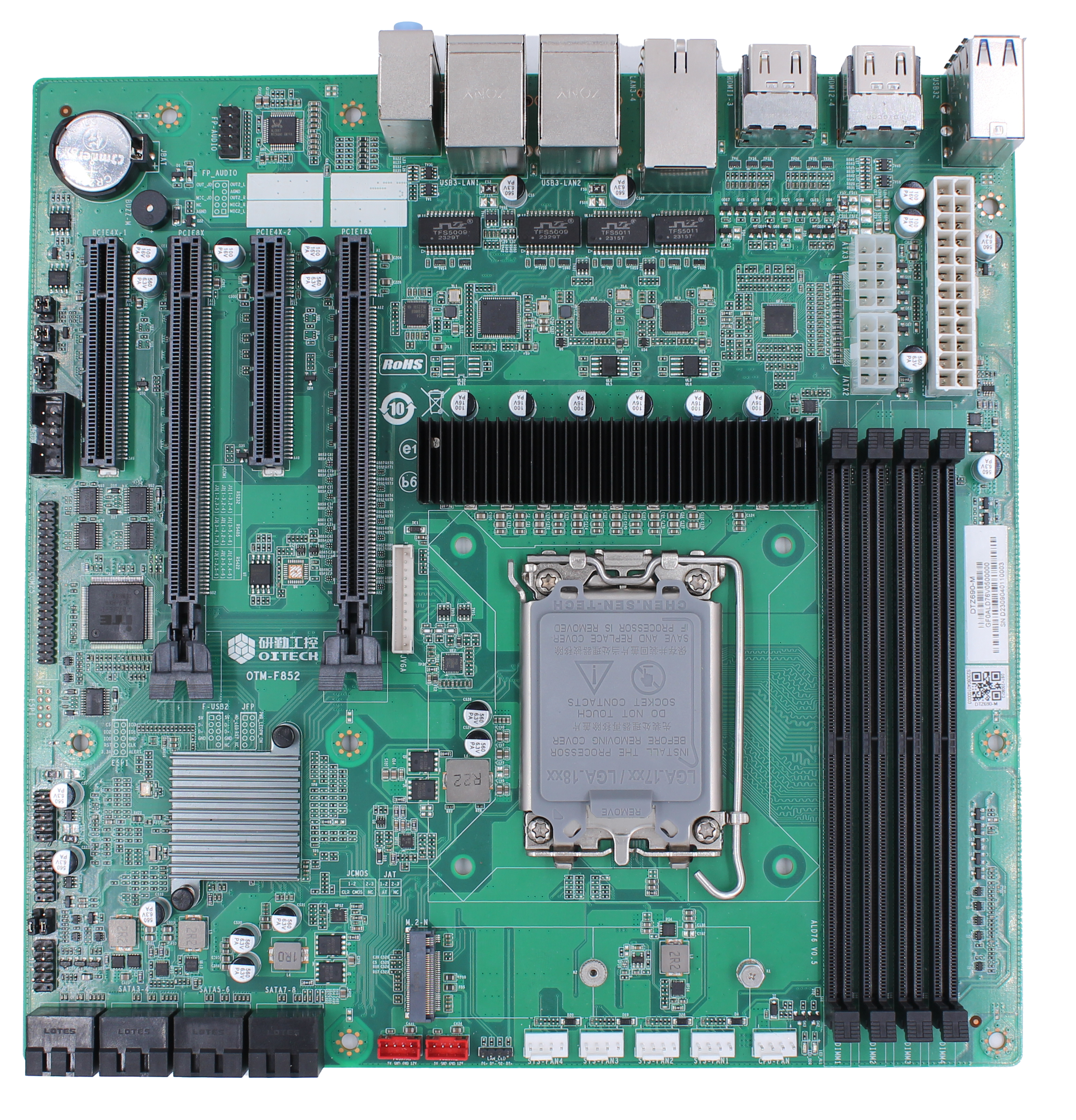

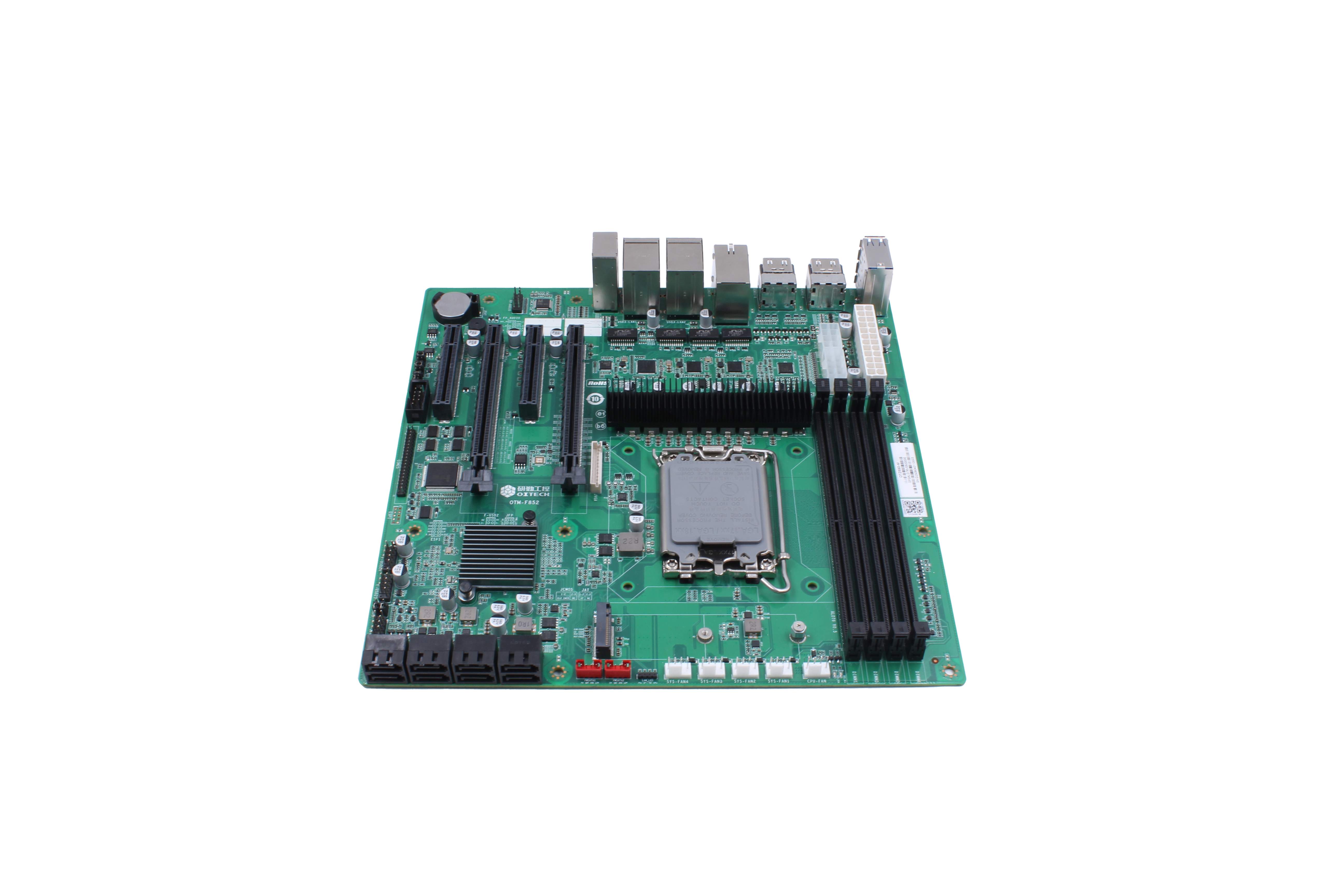

Intel LGA1700 Socket with Intel Z690 Chipset based Micro-ATX MB
Intel® Z690 Chipset

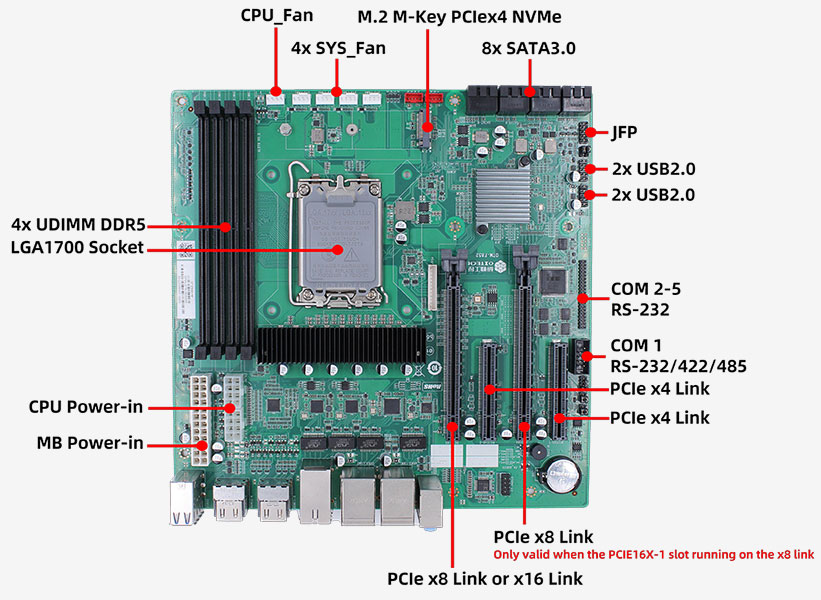

Dual Channel DDR5 up to 128GB

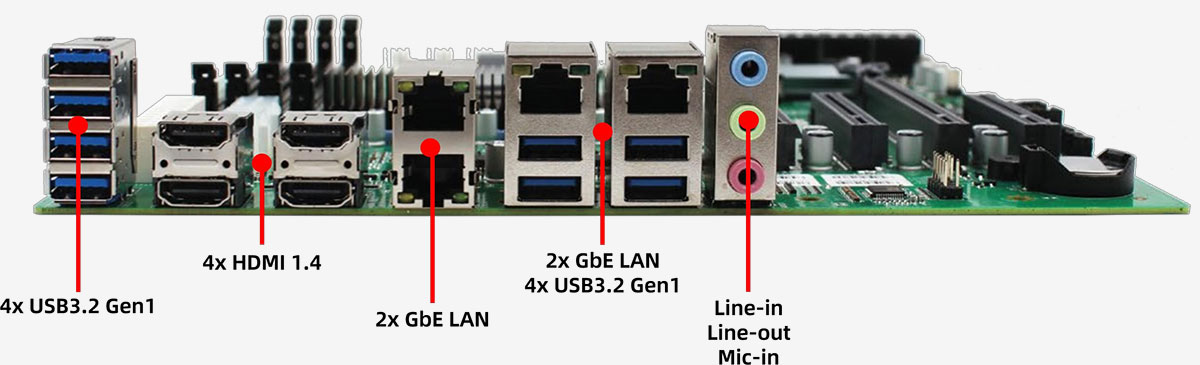

4x HDMI 1.4, Supports quad displays
4x LAN, 8x USB3.0, 4x USB2.0, 5x COM
1x M.2 2280 NVMe PCIE4.0 x4
8x SATA3.0, Supports Software RAID 0 1 5 10
Power-in: ATX_24Pin + 2x 8Pin
| 处理器 | CPU | Core I9/ I7/ I5/ I3/ Pentium/ Celeron |
| Core Number | ||
| # of P-cores | ||
| # of E-cores | ||
| Thread Number | ||
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Max Turbo Frequency | ||
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Processor Base Frequency | ||
| Socket | LGA 1700 | |
| Chipset | Intel Z690 | |
| NPU | ||
| Cache (MB) | ||
| CPU TDP | All LAG1700 SKUs are supported | |
| BIOS | ||
| 内存 | Technology | Dual Channel DDR4 3200 MHz |
| Max capacity | 128GB | |
| ECC Support | ||
| Socket | 4x U-DIMM 288Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel UHD 730/770 Graphics |
| Graphic Engine | DirectX 12, OpenGL 4.5, OpenCL 2.1 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | ||
| ADI (BNC/ VGA/ DVI-I) | VGA: Up to 1920x1080@60 Hz | |
| DDI (DVI-D/ HDMI/ DP) | 4x HDMI: Up to 4096x2304@24Hz | |
| Multiple Display | Quad | |
| 以太网控制器 | Controller | LAN 1: Intel Ethernet I219 LAN 2-4: Intel Ethernet I210 |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | 4x RJ45 | |
| 音频 | Audio Interface | HD Audio |
| CODEC | Realtek, High Definition Audio (HD) | |
| Amplifier | ||
| Connector | 3 (Line out, Line in, Mic in), FP_AUDIO | |
| 扩展 | PCI Express x16 | 1 (Gen4, x16 Link) or 2 (Gen4, x8 Link) |
| PCI Express x8 | 2 (Gen4, x4 Link) | |
| PCI Express x4 | ||
| PCI Express x2 | ||
| PCI Express x1 | ||
| PCI | ||
| Mini PCIe | ||
| M.2 Key-E | ||
| M.2 Key-B | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | ||
| TPM | ||
| Bus interface | ||
| 存储 | Memory Card | |
| SATA | 8x SATA3.0 | |
| mSATA | ||
| M.2 Key-B | ||
| M.2 Key-M | Type 2280: NVMe PCIe4.0 x4 | |
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | 4 | |
| USB 3.2 Gen 1 | 8 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 5 (4x RS-232, 1x RS-232/ 485/ 422) | |
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| LPT | ||
| Smart Fan | 1x CPU_FAN, 4x SYS_FAN | |
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| 前面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | SYS, HDD |
| Control | ON/ OFF, Reset | |
| Watchdog Timer | Support | |
| 电源 | Power Type | ATX Mode |
| Connector | MB 24 Pin + CPU 2x 8 Pin | |
| Power Consumption (Full Load) | ||
| Input Voltage | ||
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Non-Operational Temperature | -40 ~ 80 °C (-40 ~ 176 °F) | |
| Relative Humidity | ||
| 支持系统 | Microsoft Windows | 10, 11 |
| Linux | Yes (Linux kernel 5.18 or later) | |
| Android | ||
| BSD | ||
| 国产操作系统 | ||
| 物理规格 | Mounting | |
| Dimension(mm) | 243.84x243.84 | |
| Dimension(WxHxD mm) | ||
| Weight (Kg) | TBD |
