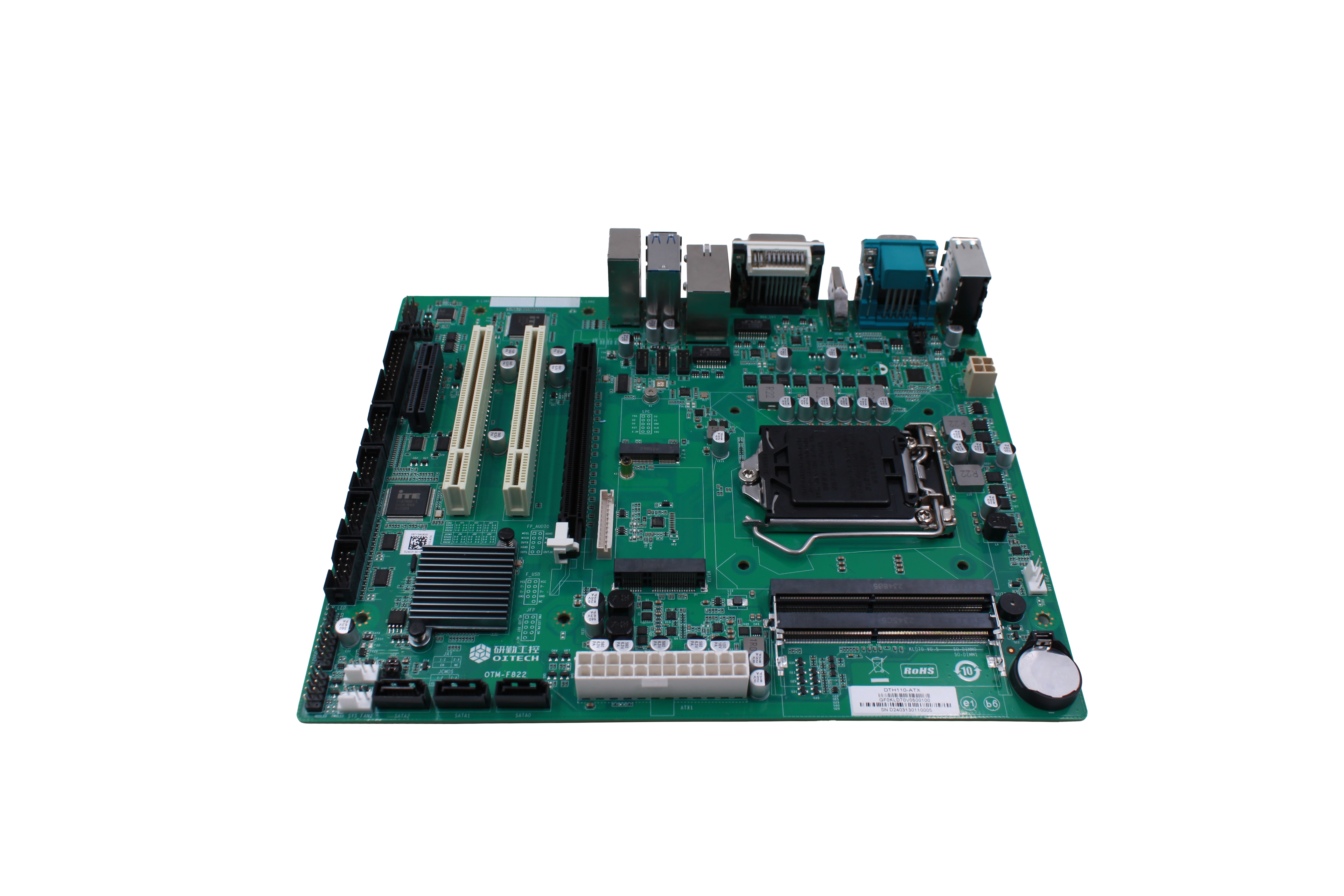

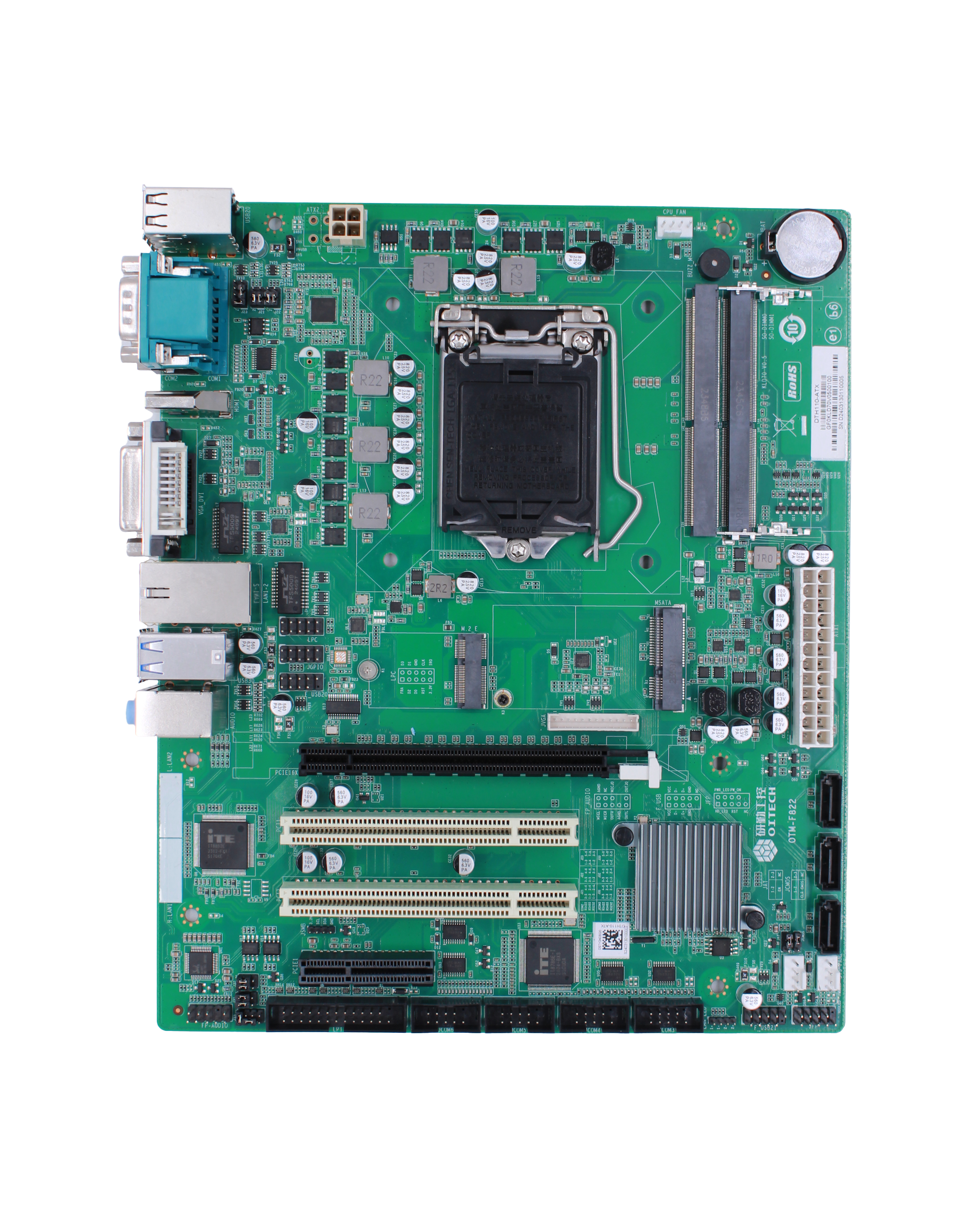

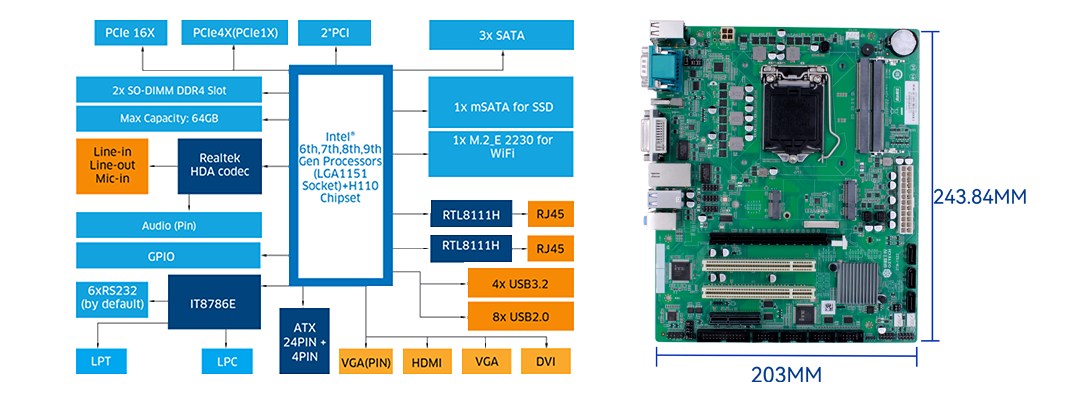

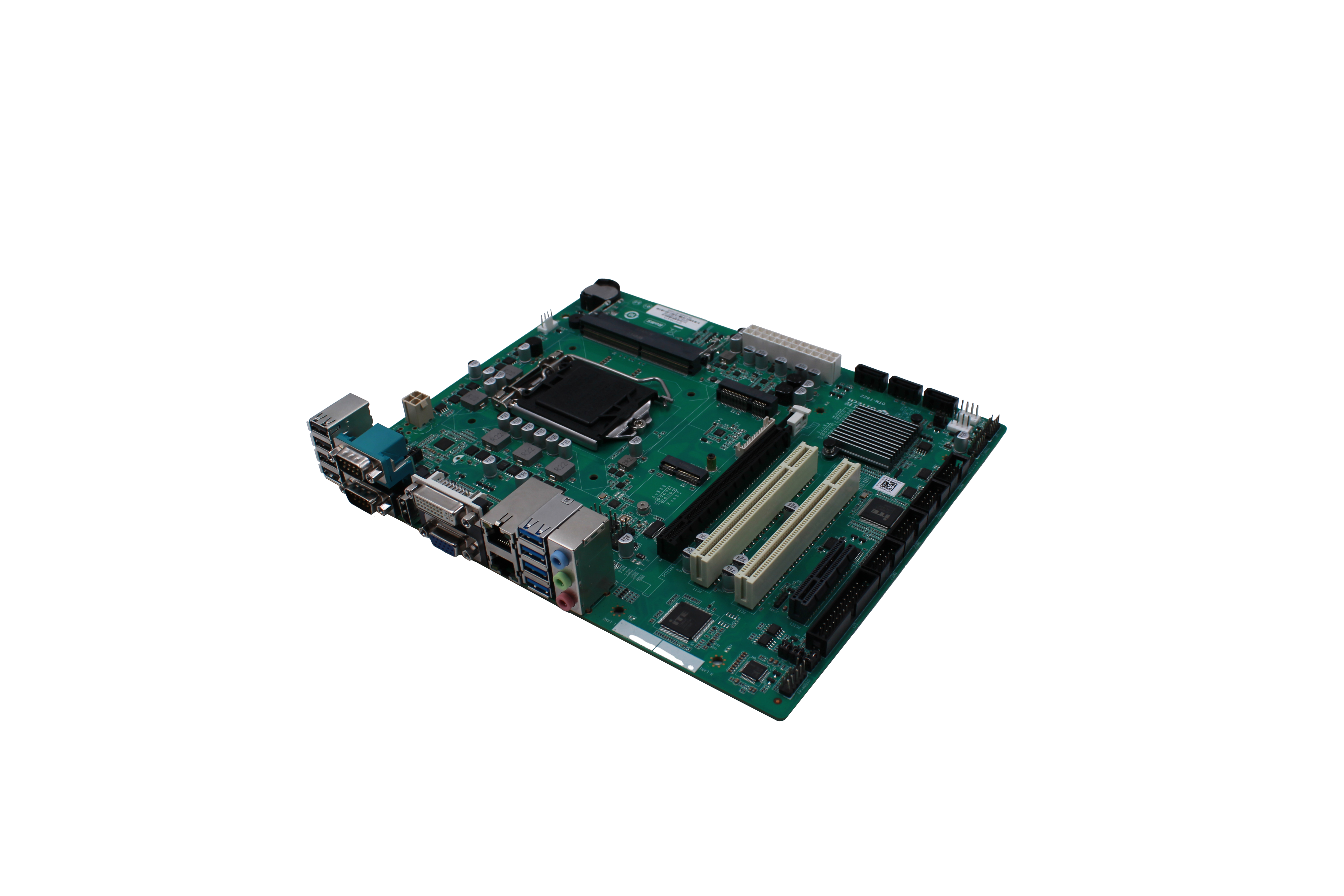

Intel® 6-9th Gen Desktop Processor
Intel® H110 Chipset
Dual channel DDR4 SO-DIMM up to 64GB

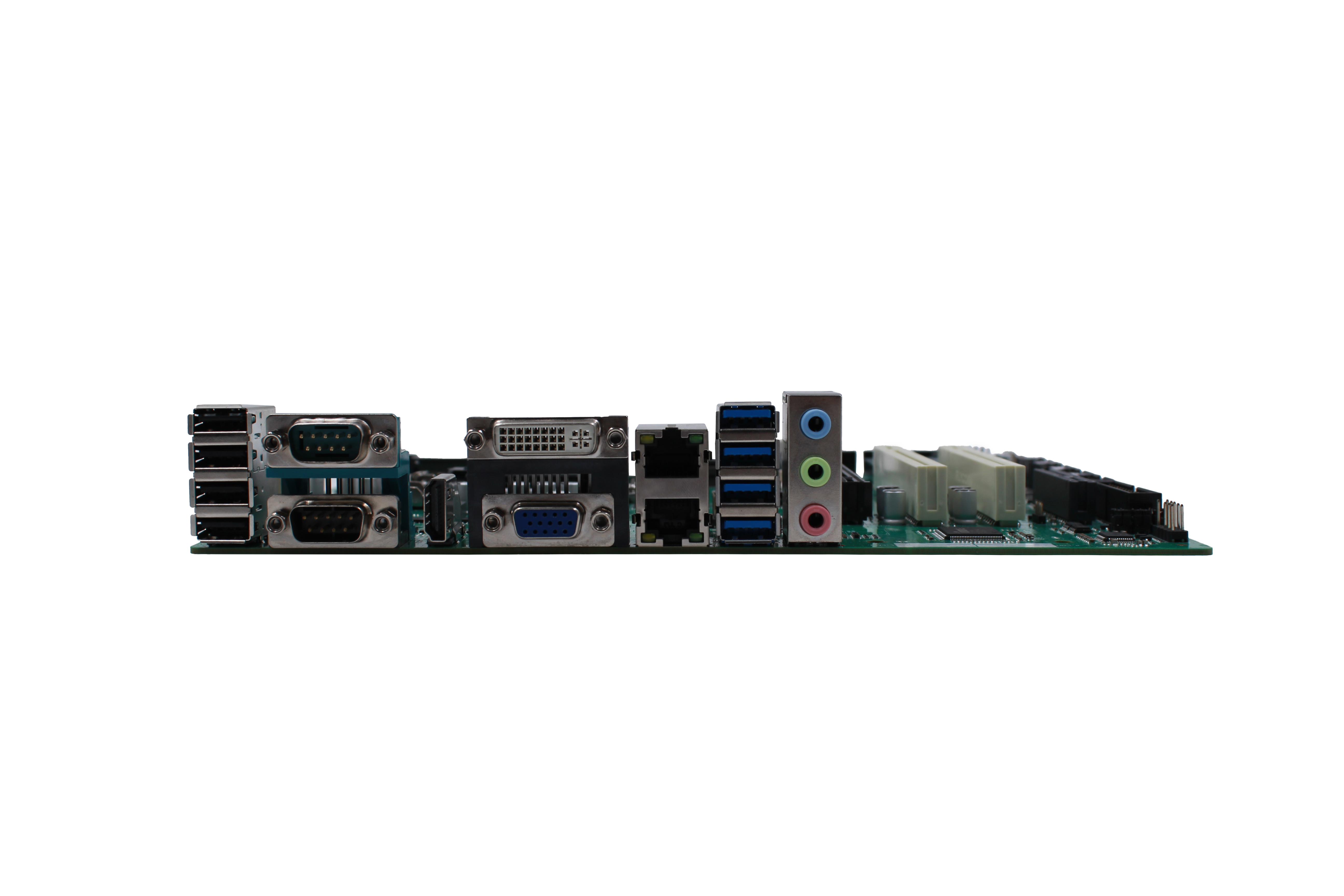

HDMI, 2x VGA, DVI-D, Supports Triple displays
1x M.2 Key E, Supports Wi-Fi module
2x GbE LAN, Support PXE, WOL
4x USB3.0, 8x USB2.0, 6x COM, 2x PCIe, 2x PCI
8 bit GPIO, 1x LPT, 1x LPC
ATX 24 Pin + 8 Pin input
| 处理器 | CPU | Core i7/ i5/ i3/ Pentium/ Celeron |
| Core Number | ||
| # of P-cores | ||
| # of E-cores | ||
| Thread Number | ||
| Performance-core Turbo Frequency | ||
| Efficient-core Turbo Frequency | ||
| Max Turbo Frequency | ||
| Performance-core Base Frequency | ||
| Efficient-core Base Frequency | ||
| Processor Base Frequency | ||
| Socket | LGA 1151 | |
| Chipset | Intel H110 | |
| NPU | ||
| Cache (MB) | ||
| CPU TDP | Hexa-Core 65W (Do not support Octa-Core 65W/ 95W CPU | |
| BIOS | ||
| 内存 | Technology | Dual channel DDR4 2133/ 2400Mhz |
| Max capacity | 64GB | |
| ECC Support | ||
| Socket | 2x SO-DIMM 260 Pin | |
| Internal Memory | ||
| 显示 | Controller | Intel HD/ UHD Graphics (Depend on the CPU model) |
| Graphic Engine | DirectX 12, OpenGL 4.5 | |
| H/ W Video Codec | ||
| LCD (TTL/ LVDS/ eDP) | ||
| ADI (BNC/ VGA/ DVI-I) | 2x VGA: Up to 1920x1080@60 Hz | |
| DDI (DVI-D/ HDMI/ DP) | DVI-D: Up to 1920x1080@60 Hz HDMI: Up to 4096x2304@60Hz | |
| Multiple Display | Dual | |
| 以太网控制器 | Controller | LAN 1: Realtek RTL8111 LAN 2: Realtek RTL8111 |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | 2x RJ-45 | |
| 音频 | Audio Interface | HD Audio |
| CODEC | Realtek, High Definition Audio (HD) | |
| Amplifier | 2x 3W, L&R | |
| Connector | 3 (Line out, Line in, Mic in), FP_AUDIO | |
| 扩展 | PCI Expressx16 | 1 (Gen3) |
| PCI Expressx8 | ||
| PCI Expressx4 | 1 (Gen3, x1 Link) | |
| PCI Expressx2 | ||
| PCI Expressx1 | ||
| PCI | 2 | |
| Mini PCIe | ||
| M.2 Key-E | Type 2230: Wi-Fi | |
| M.2 Key-B | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Type-C | ||
| TPM | ||
| Bus interface | 1x LPC | |
| 存储 | Memory Card | |
| SATA | 3x SATA3.0 | |
| mSATA | Full-size: mSATA3.0 for SSD | |
| M.2 Key-B | ||
| M.2 Key-M | ||
| RAID | ||
| 输入输出 | Display | |
| USB 2.0 | 8 | |
| USB 3.2 Gen 1 | 4 | |
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | 6 (4x RS-232, 2x RS-232/ 485/ 422) | |
| GPIO | 8 bit | |
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| LPT | 1 | |
| Smart Fan | 1x CPU_FAN, 2x SYS_FAN | |
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| 前面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 后置面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF Card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 侧面板 | Display | |
| RJ-45 | ||
| USB 2.0 | ||
| USB 3.2 Gen 1 | ||
| USB 3.2 Gen 2 | ||
| USB 3.2 Gen 2×2 | ||
| Type-C | ||
| COM Port | ||
| GPIO | ||
| Digital I/ O | ||
| Bus interface | ||
| PS/ 2 | ||
| Audio | ||
| LPT | ||
| TF card Slot | ||
| SIM Card Slot | ||
| Industry Connectors | ||
| On-board Pin Header Extension (optional) | ||
| 其他 | LED Indicators | SYS, HDD |
| Control | ON/ OFF, Reset | |
| Watchdog Timer | Support | |
| 电源 | Power Type | ATX Mode |
| Connector | MB 24 Pin + CPU 2x 4 Pin | |
| Power Consumption (Full Load) | ||
| Input Voltage | ||
| Battery | Lithium 3V/ 200 mAh | |
| 使用环境 | Operational Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Non-Operational Temperature | -40 ~ 80 °C (-40 ~ 176 °F) | |
| Relative Humidity | ||
| 支持系统 | Microsoft Windows | 7 (only 6th CPU), 10, 11 |
| Linux | Yes (by Project) | |
| Android | ||
| BSD | ||
| 国产操作系统 | ||
| 物理规格 | Mounting | |

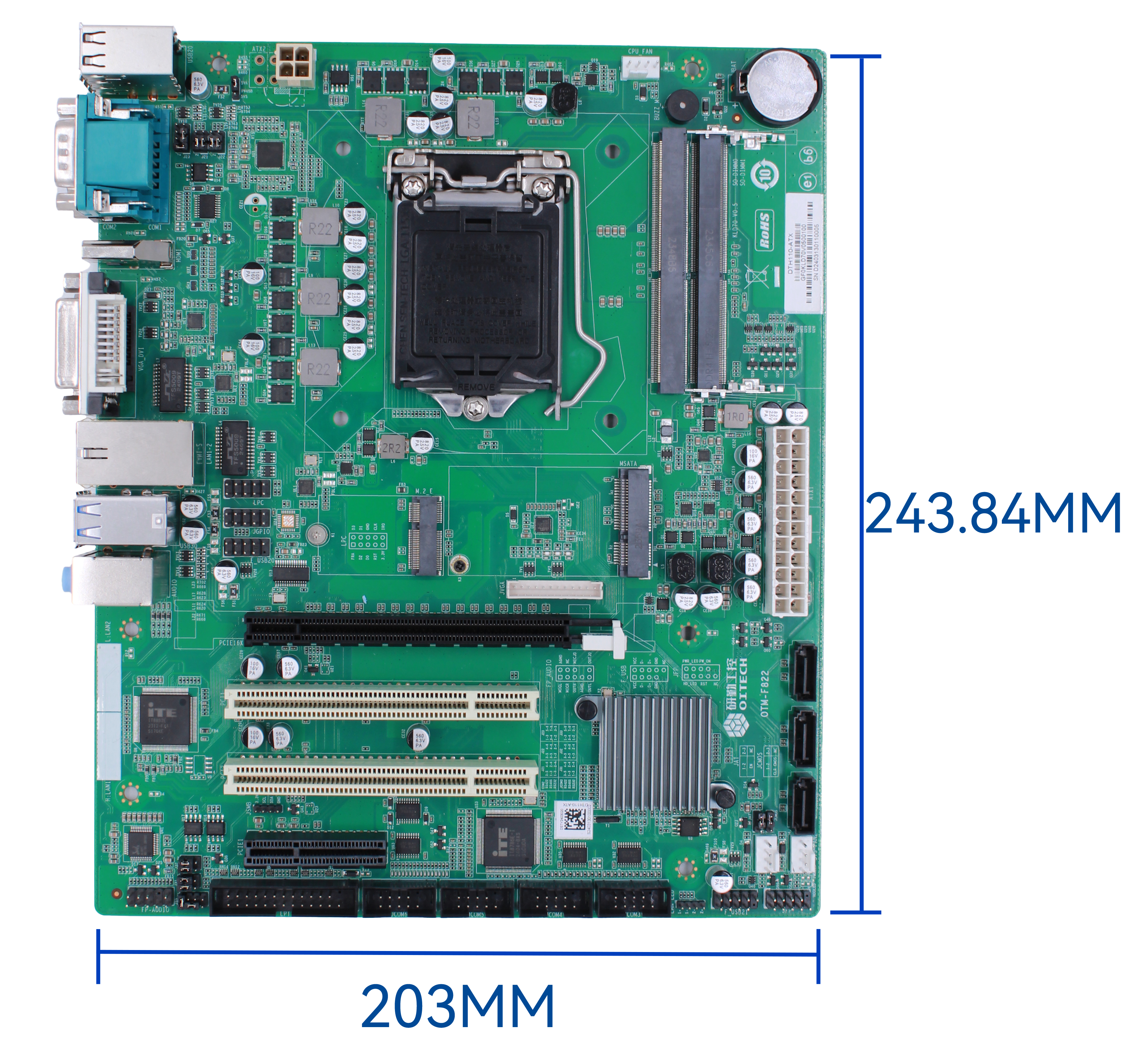

| Dimension(mm) | 243.84x203 | |
| Dimension(WxHxD mm) | ||
| Weight (Kg) | TBD |
