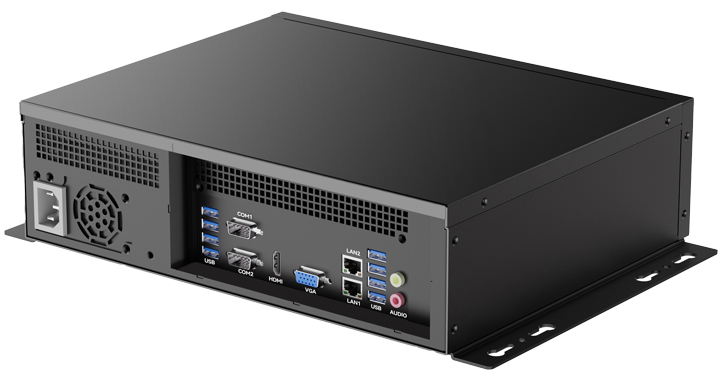

4th Gen Intel Haswell Desktop Processor
Dual channel DDR3 U-DIMM up to 16GB
VGA, DVI, HDMI. supports triple displays
2x GbE LAN, Supports PXE, WOL
1x mSATA, 5x SATA2.0, 10x USB,10x COM
3x PCIe, 4x PCI, 8 bit GPIO
1x LPC, 1x LPT, 1x PS/2 (KB/MS)
Industrial Scalable system, 4U rackmount design
Single AC 220V power input (AC 110V Optional)
处理器 | CPU | Socket LGA 1150 (4th Gen Core I3/I5/I7, Pentium, Celeron) |
Core Number | ||
# of P-cores | ||
# of E-cores | ||
Thread Number | ||
Performance-core Turbo Frequency | ||
Efficient-core Turbo Frequency | ||
Max Turbo Frequency | ||
Performance-core Base Frequency | ||
Efficient-core Base Frequency | ||
Processor Base Frequency | ||
Socket | ||
Chipset | Intel B85 Chip | |
NPU | ||
Cache (MB) | ||
CPU TDP | ||
BIOS | ||
内存 | Technology | Dual channel DDR3 1600Mhz |
Max capacity | 16 GB | |
ECC Support | ||
Socket | 2x U-DIMM 240 pin | |
Internal Memory | ||
显示 | Controller | Intel HD Graphics for 4th Gen Intel Processor |
Graphic Engine | OpenGL 4.3, DirectX 11.2, AVC, VP8, VC1, JPEG | |
H/ W Video Codec | ||
LCD (TTL/ LVDS/ eDP) | ||
ADI (BNC/ VGA/ DVI-I) | ||
DDI (DVI-D/ HDMI/ DP) | ||
Multiple Display | ||
以太网控制器 | Controller | LAN 1-2: Realtek RTL8111H |
Speed | LAN 1-2: 100/1000 Mbps | |
Connector | ||
音频 | Audio Interface | |
CODEC | ||
Amplifier | ||
Connector | ||
扩展 | PCI Expressx16 | 1x FH/FL |
PCI Expressx8 | ||
PCI Expressx4 | ||
PCI Expressx2 | 1x FH/FL | |
PCI Expressx1 | 1x FH/FL | |
PCI | 4x FH/FL | |
Mini PCIe | ||
M.2 Key-E | ||
M.2 Key-B | ||
TF card Slot | ||
SIM Card Slot | ||
Type-C | ||
TPM | ||
Bus interface | ||
存储 | Memory Card | |
SATA | 3x SATA3.0 for 2.5"/3.5" SSD/HDD & 1x SATA2.0 for 2.5" SSD/HDD | |
mSATA | 1 x Full-size mSATA for SSD | |
M.2 Key-B | ||
M.2 Key-M | ||
RAID | ||
输入输出 | Display | |
USB 2.0 | ||
USB 3.2 Gen 1 | ||
USB 3.2 Gen 2 | ||
USB 3.2 Gen 2×2 | ||
Type-C | ||
COM Port | ||
GPIO | ||
Digital I/ O | ||
Bus interface | ||
PS/ 2 | ||
LPT | ||
Smart Fan | ||
TF card Slot | ||
SIM Card Slot | ||
Industry Connectors | ||
前面板 | Display | |
RJ-45 | ||
USB 2.0 | ||
USB 3.2 Gen 1 | ||
USB 3.2 Gen 2 | ||
USB 3.2 Gen 2×2 | ||
Type-C | ||
COM Port | ||
GPIO | ||
Digital I/ O | ||
Bus interface | ||
PS/ 2 | ||
Audio | ||
LPT | ||
TF card Slot | ||
SIM Card Slot | ||
Industry Connectors | ||
On-board Pin Header Extension (optional) | ||
后置面板 | Display | VGA, DVI, HDMI |
RJ-45 | 2 | |
USB 2.0 | 2 | |
USB 3.2 Gen 1 | ||
USB 3.2 Gen 2 | ||
USB 3.2 Gen 2×2 | ||
Type-C | ||
COM Port | ||
GPIO | ||
Digital I/ O | ||
Bus interface | ||
PS/ 2 | ||
Audio | ||
LPT | ||
TF Card Slot | ||
SIM Card Slot | ||
Industry Connectors | ||
On-board Pin Header Extension (optional) | ||
侧面板 | Display | |
RJ-45 | ||
USB 2.0 | ||
USB 3.2 Gen 1 | ||
USB 3.2 Gen 2 | ||
USB 3.2 Gen 2×2 | ||
Type-C | ||
COM Port | ||
GPIO | ||
Digital I/ O | ||
Bus interface | ||
PS/ 2 | ||
Audio | ||
LPT | ||
TF card Slot | ||
SIM Card Slot | ||
Industry Connectors | ||
On-board Pin Header Extension (optional) | ||
其他 | LED Indicators | |
Control | ||
Watchdog Timer | ||
电源 | Power Type | 4U ATX non-redundant, 300W-700W power supply |
Connector | ||
Power Consumption (Full Load) | ||
Input Voltage | Single AC 220V Input (AC 110V Optional) | |
Battery | ||
使用环境 | Operational Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
Non-Operational Temperature | -40 ~ 80°C (-40~176 °F) | |
Relative Humidity | 95% @ 40 °C (non-condensing) | |
支持系统 | Microsoft Windows | Win 7, Win 10, |
Linux | Linux (by Project) | |
Android | ||
BSD | ||
国产操作系统 | ||
物理规格 | Mounting | |
Dimension(mm) | ||
Dimension(WxHxD mm) | 482 x 177 x 482 mm | |
Weight (Kg) | TBD |
