OTS-2822

Intel 6-9th Gen Processor LGA1151

Dual channel DDR4 UDIMM up to 128GB

VGA, DVI-D, HDMI. Supports Triple displays

Supports 4G/5G/Wi-Fi modules

2x GbE LAN, Supports PXE, WOL

12x USB, 6x COM, 3x PCIe, 4x PCI

Industrial Scalable system, 2U rackmount design

Single AC 220V power input (AC 110V Optional)

资源下载
获取报价
OTS-2822
获取报价
产品参数
接口一览
尺寸一览
相关产品
适用场景
产品参数
处理器 CPU Core i7/ i5/ i3/ Pentium/ Celeron
Core Number
# of P-cores
# of E-cores
Thread Number
Performance-core Turbo Frequency
Efficient-core Turbo Frequency
Max Turbo Frequency
Performance-core Base Frequency
Efficient-core Base Frequency
Processor Base Frequency
Socket LGA 1151
Chipset Intel Q170
NPU
Cache (MB)
CPU TDP Hexa-Core 65W (Do not support Octa-Core 65W/ 95W CPU
BIOS
内存 Technology Dual channel DDR4
Max capacity 128GB (6-7th Gen are only 64GB )
ECC Support
Socket 4x U-DIMM 288 Pin
Internal Memory
显示 Controller Intel HD/ UHD Graphics (Depend on the CPU model)
Graphic Engine DirectX 12, OpenGL 4.5
H/ W Video Codec
LCD (TTL/ LVDS/ eDP)
ADI (BNC/ VGA/ DVI-I) VGA: Up to 1920x1080@60 Hz
DDI (DVI-D/ HDMI/ DP) DVI-D: Up to 1920x1080@60 Hz
HDMI: Up to 4096x2160@60Hz
Multiple Display Triple
以太网控制器 Controller LAN 1-2: Intel Ethernet I210
Speed 10/ 100/ 1000 Mbps
Connector
音频 Audio Interface HD Audio
CODEC Realtek, High Definition Audio (HD)
Amplifier
Connector
扩展 PCI Expressx16 1 (Gen3, HH/ FL)
PCI Expressx8
PCI Expressx4 2 (Gen3, HH/ FL)
PCI Expressx2
PCI Expressx1
PCI 4 (HH/ FL)
Mini PCIe
M.2 Key-E Type 2230: Wi-Fi
M.2 Key-B Type 2242: 4G/ 5G
TF card Slot
SIM Card Slot SIM (Built into the MB)
Type-C
TPM
Bus interface
存储 Memory Card
SATA 4x SATA3.0 for 2.5"/ 3.5" SSD/ HDD
mSATA
M.2 Key-B
M.2 Key-M
RAID
输入输出 Display
USB 2.0
USB 3.2 Gen 1
USB 3.2 Gen 2
USB 3.2 Gen 2×2
Type-C
COM Port
GPIO
Digital I/ O
Bus interface
PS/ 2
LPT
Smart Fan
TF card Slot
SIM Card Slot
Industry Connectors
前面板 Display
RJ-45
USB 2.0 2
USB 3.2 Gen 1
USB 3.2 Gen 2
USB 3.2 Gen 2×2
Type-C
COM Port
GPIO
Digital I/ O
Bus interface
PS/ 2
Audio
LPT
TF card Slot
SIM Card Slot
Industry Connectors
On-board Pin Header Extension (optional)
后置面板 Display VGA, DVI-D, HDMI
RJ-45 2
USB 2.0 2
USB 3.2 Gen 1 4
USB 3.2 Gen 2
USB 3.2 Gen 2×2
Type-C
COM Port
GPIO
Digital I/ O
Bus interface
PS/ 2 1 (KB/ MS)
Audio 3 (Line out, Line in, Mic in)
LPT
TF Card Slot
SIM Card Slot
Industry Connectors
On-board Pin Header Extension (optional) 2x USB2.0, 2x USB3.0, 4x RS-232, 2x RS-232/ 485, 8bit GPIO
侧面板 Display
RJ-45
USB 2.0
USB 3.2 Gen 1
USB 3.2 Gen 2
USB 3.2 Gen 2×2
Type-C
COM Port
GPIO
Digital I/ O
Bus interface
PS/ 2
Audio
LPT
TF card Slot
SIM Card Slot
Industry Connectors
On-board Pin Header Extension (optional)
其他 LED Indicators SYS, HDD
Control ON/ OFF, Reset
Watchdog Timer Support
电源 Power Type 1U/Flex non-Redundant Power Supply
Connector GB
Power Consumption (Full Load) 150-350W
Input Voltage 220V 50Hz
Battery Lithium 3V/ 200 mAh
使用环境 Operational Temperature 0 ~ 60 °C (32 ~ 140 °F)
Non-Operational Temperature -40 ~ 80 °C (-40 ~ 176 °F)
Relative Humidity 95%@40 °C (non-Condensing)
支持系统 Microsoft Windows 7, 8, 10
Linux Yes (by Project)
Android
BSD
国产操作系统
物理规格 Mounting
Dimension(mm)
Dimension(WxHxD mm) 482x87x500.7
Weight (Kg) TBD
接口一览

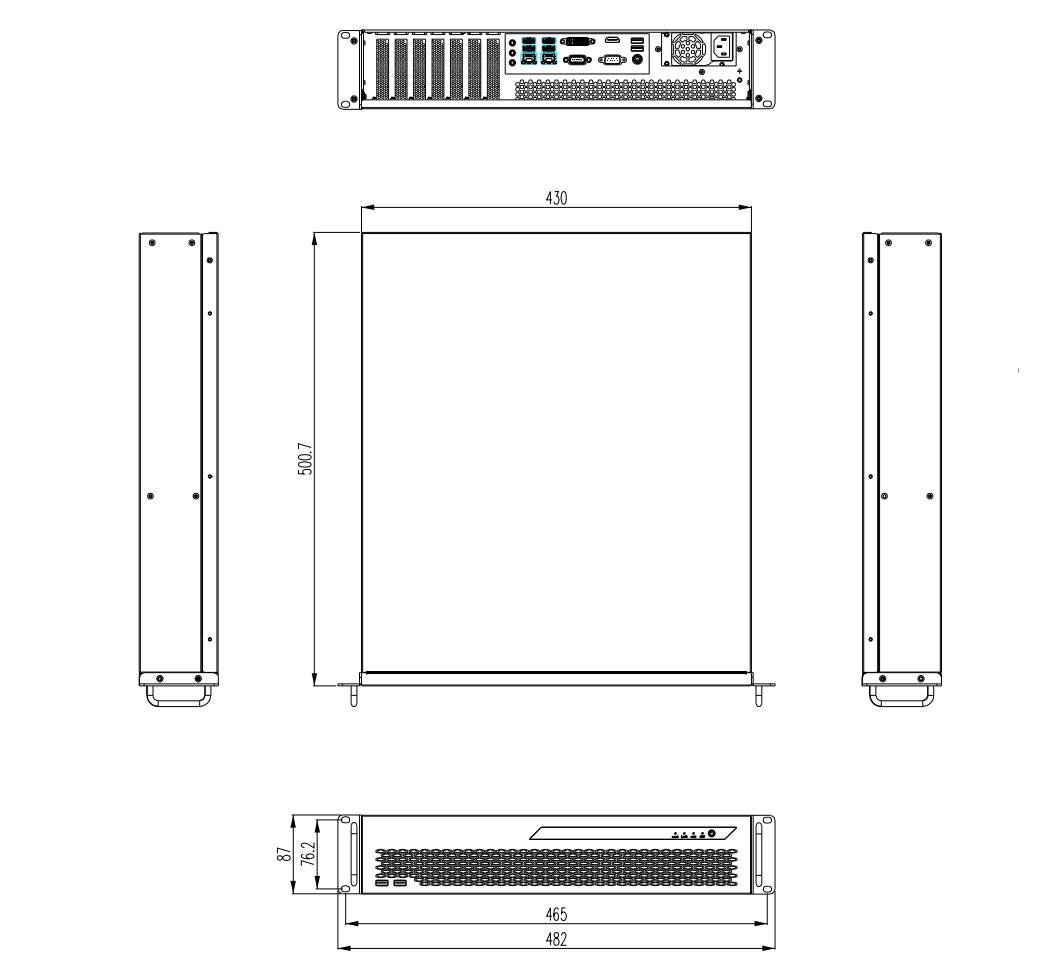

尺寸一览
